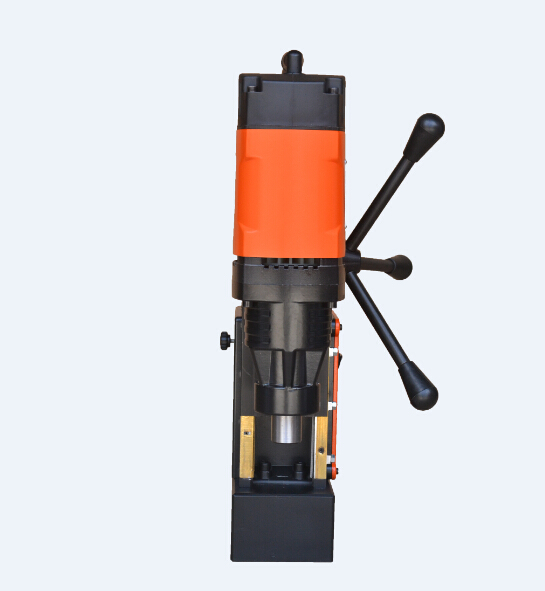

Magnetic Drill SCY-2300(E), SCY-2800(E)
-
1: Hosts gearbox fixed, high accuracy
-
2: CNC proecessed magnesium alloy frame
-
3: light weight and small size
-
4: High power
-
5: High effenciency
Drill Machine
Handle
Fuse
Instruction
BMC
|
Product model
|
SCY-2300
SCY-2300E
|
SCY-2800
SCY-2800E
|
|
Twist drill dia(mm)
|
Φ23
|
|
|
Rated voltage(v)
|
110/220
|
110/220
|
|
Max.attraction(n)
|
14000
|
14800
|
|
Rated frequency(hz)
|
50~60
|
50~60
|
|
Rated input power(w)
|
1500
|
1780
|
|
No-load speed(rpm)
|
440
100-440
|
340
100-340
|
1.high power withsmall size and light weight.
2.with constant power soft-starting and electric stepless speed-regulation.
3.with over-loading protection using electric speed-regulation.
4.high adhesion
Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level,side face and top face,and widely used in the building,bridge building,and ship building industries and so on.You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation.They are convenient and small,and can reducing work force and improve the machining accuracy and effiency.velocity-adjustable magnetic drill is characteristic of constant power,over-loading protection and infinitely viable speed transmission,etc.
