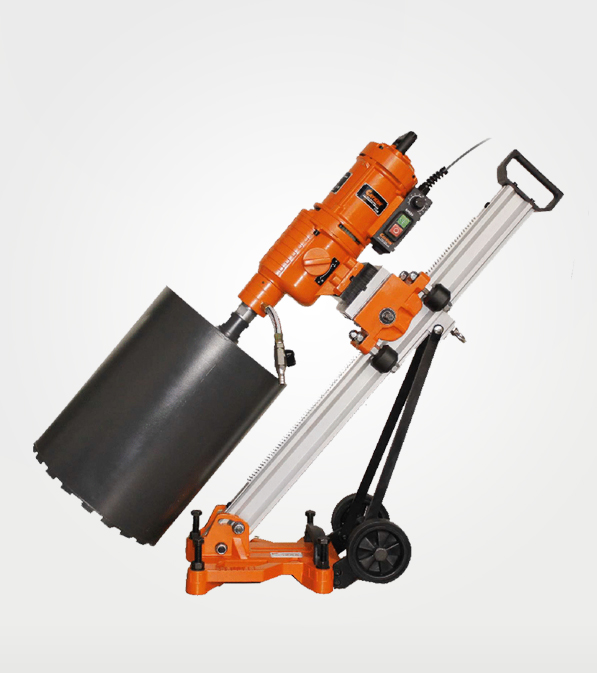

Diamond Core Drill SCY-3050BM,3050BCM,3050BCEM

Product Features

  • E   Represents the stepless speed regulation
  • C   Represents the gear  speed regulation
  • Safety Clutch and Overload Protection.
  • Water proof switch .
  • Soft-starting.
  • Gear speed-regulation.
  • The adjustable bracket form 0-90°.

OPTION

Spindle
1-1/4″-7UNC 1-1/4″-3UNC 1-1/4″-7UNC & 1/2″BSP

Included in price

  • Core drill rig
  • Allen wrench and tools
  • Instruction manual
  • Carbon brush
  • Water pipe

PRODUCT MODEL AND PARAMETER

Product model
SCY-3050BM
SCY-3050BCM
SCY-3050BCEM
Concrete drilling range
~12"
(~305mm)
~12"
(~305mm)
~12"
(~305mm)
Rated voltage
110/220v 110/220v
110/220v
Rated frequency
50~60hz 50~60hz
50~60hz
Rated input power
4650w 4650w 4650w
No-load speed
600rpm 480/750rpm 100-480/750rpm


BUY HOTLINE: +86 17717039819 Email: saleslin@cayken.com.cn
  • Hot Sale

    Cast magnesium alloy frame, small volume and light weight. Gear box full of liquid Mobil oil. With overload and gear drive. Advanced circuit board
