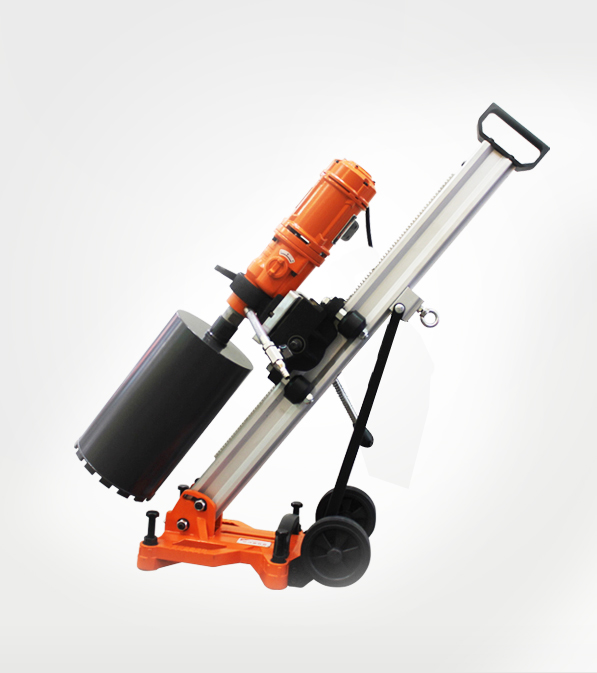

Diamond Core Drill SCY-1520/2BS,1780/3BS,2020/3BS

Product Features

  • E   Represents the stepless speed regulation
  • C   Represents the gear  speed regulation
  • Safety Clutch and Overload Protection.
  • Water proof switch .
  • Soft-starting.
  • Gear speed-regulation.
  • Gear box with oil bath.
  • Fast detachable adjustable bracket.

OPTION

Spindle
1-1/4″-7UNC 1-1/4″-3UNC 1-1/4″-7UNC & 1/2″BSP

Included in price

  • Core drill rig
  • Allen wrench and tools
  • Instruction manual
  • Carbon brush
  • Water pipe

PRODUCT MODEL AND PARAMETER

Product model

SCY-1520/2BS

1520/2EBS

SCY-1780/3BS

SCY-1780/3EBS

SCY-2020/3BS

SCY-2020/3EBS

Brick drilling range

~6"

(~150mm)

~7"

(~180mm)

~8"

(~200mm)

Concrete drilling range

~5"

(~125mm)

~6"

(~150mm)

~7"

(~160mm)



Rated voltage

110/220v

110/220v

110/220v



Rated frequency

50~60hz

50~60hz

50~60hz



Rated input power

1800w

1900w

2100w

No-load speed

700/2770rpm

100-700/2770rpm

700/1500/2980rpm

100-700/1500/2980rpm

590/1310/2730rpm 100-590/1310/2730rpm


BUY HOTLINE: +86 17717039819 Email: saleslin@cayken.com.cn
  • Hot Sale

    Cast magnesium alloy frame, small volume and light weight. Gear box full of liquid Mobil oil. With overload and gear drive. Advanced circuit board
