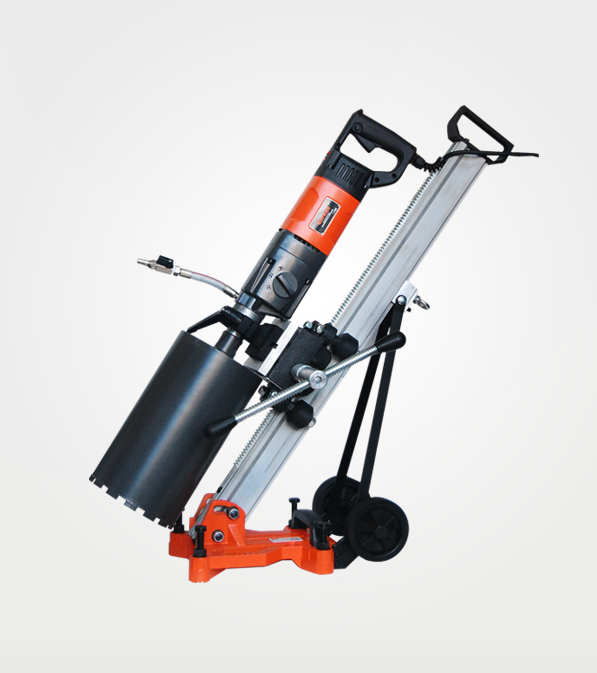

Diamond Core Drill SCY-26/3EBM

Product Features

  • E   Represents the stepless speed regulation
  • C   Represents the gear  speed regulation
  • Safety Clutch and Overload Protection.
  • Water proof switch .
  • Soft-starting.
  • Gear speed-regulation.
  • Fast detachable adjustable bracket.

OPTION

Spindle
1-1/4″-7UNC 1-1/4″-3UNC 1-1/4″-7UNC & 1/2″BSP



Included in price

  • Core drill rig
  • Allen wrench and tools
  • Instruction manual
  • Carbon brush
  • Water pipe

PRODUCT MODEL AND PARAMETER

Product model
(hand held)  SCY-26/3EBM
(in drill stand)  SCY-26/3EBM
Brick drilling range
~6.5"
(~165mm)
~6.5"
(~165mm)
Concrete drilling range
~4"
(~102mm)
~5"
(~130mm)
Rated voltage
110/220v
110/220v
Rated frequency
50~60hz
50~60hz
Rated input power
2300w
2300w
No-load speed

530-720/700-1220/880-1330rpm

530-720/700-1220/880-1330rpm


BUY HOTLINE: +86 17717039819 Email: saleslin@cayken.com.cn
  • Hot Sale

    Cast magnesium alloy frame, small volume and light weight. Gear box full of liquid Mobil oil. With overload and gear drive. Advanced circuit board
